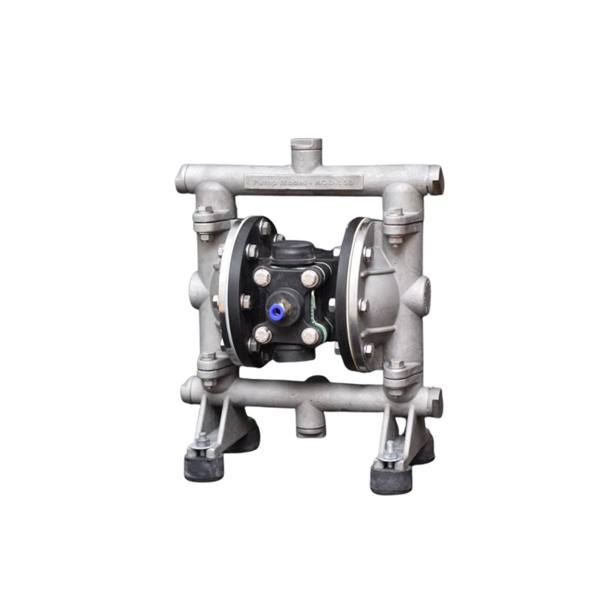

1/2″ AODD Pump — Uncoated Metallic
Air-operated double-diaphragm pump delivering up to 35 L/min in a bare metallic finish, for duties needing a clean, corrosion-resistant metal surface — hygienic and process transfer. Seal-less, self-priming and safe to run dry, with PTFE diaphragms.
Price on request
Specifications
| Construction | Metallic, uncoated |
| Diaphragm | PTFE (Teflon) · alternatives on request |
| Max flow rate | Up to 35 L/min |
| Inlet / discharge ports | 12.7 mm (1/2″ BSP) |
| Air inlet | 1/4″ BSP |
| Air exhaust | 12.7 mm (1/2″ BSP) |
| Air supply pressure | Typically 1.5–7 bar (20–100 psi) |
| Max discharge head | Up to approx. 60 m (about 6 bar) |
| Suction lift — wet / dry | Approx. 2.8 m / 1.4 m |
| Max particle size | Up to 2 mm |
| Weight | Approx. 4–5 kg |
