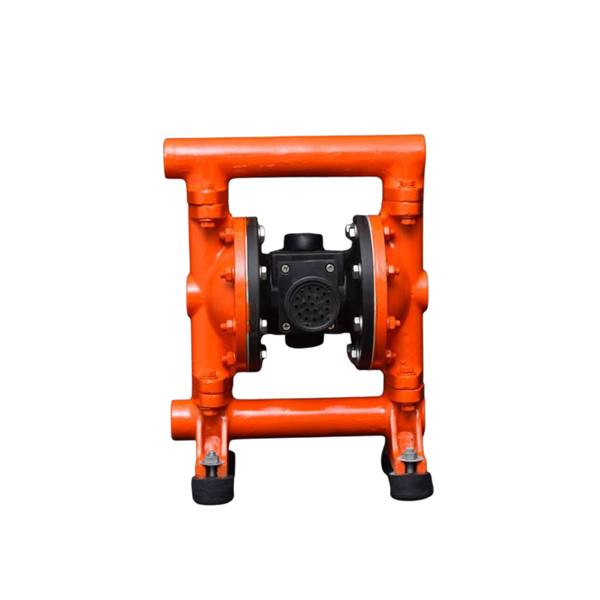

1/2″ AODD Pump — Coated Metallic
Compact air-operated double-diaphragm pump delivering up to 35 L/min. The coated metallic body suits general industrial and workshop transfer of fuels and oils, while PTFE diaphragms give broad chemical compatibility. Seal-less, self-priming and safe to run dry.
Price on request
Specifications
| Construction | Metallic, coated |
| Diaphragm | PTFE (Teflon) · alternatives on request |
| Max flow rate | Up to 35 L/min |
| Inlet / discharge ports | 12.7 mm (1/2″ BSP) |
| Air inlet | 1/4″ BSP |
| Air exhaust | 12.7 mm (1/2″ BSP) |
| Air supply pressure | Typically 1.5–7 bar (20–100 psi) |
| Max discharge head | Up to approx. 60 m (about 6 bar) |
| Suction lift — wet / dry | Approx. 2.8 m / 1.4 m |
| Max particle size | Up to 2 mm |
| Weight | Approx. 4–5 kg |
