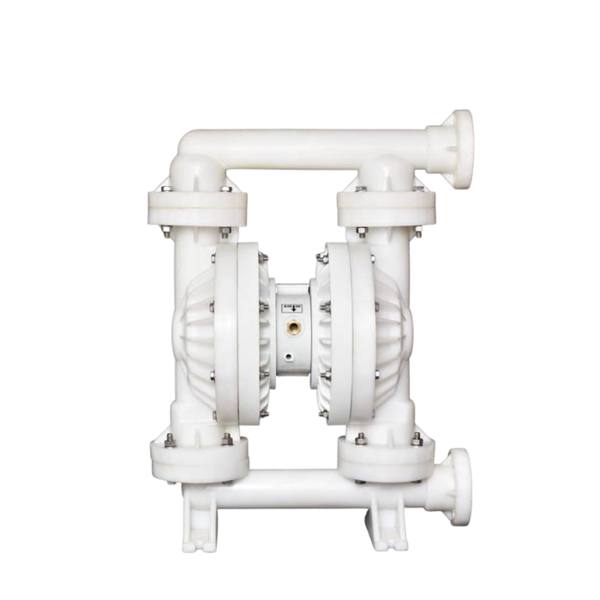

2″ AODD Pump — Non-Metallic
Delivers the range’s top flow of up to 586 L/min in a non-metallic body with PTFE diaphragms, giving excellent resistance to aggressive chemicals while passing solids to around 6.4 mm. Air-driven, seal-less, self-priming and run-dry capable.
Price on request
Specifications
| Construction | Non-metallic |
| Diaphragm | PTFE (Teflon) · alternatives on request |
| Max flow rate | Up to 586 L/min |
| Inlet / discharge ports | 50.8 mm (2″ BSP) |
| Air inlet | 1/2″ BSP |
| Air exhaust | 19.05 mm (3/4″ BSP) |
| Air supply pressure | Typically 1.5–7 bar (20–100 psi) |
| Max discharge head | Up to approx. 60 m (about 6 bar) |
| Suction lift — wet / dry | Approx. 7.6 m / 4.6 m |
| Max particle size | Up to 6.4 mm |
| Weight | Approx. 35–40 kg |
