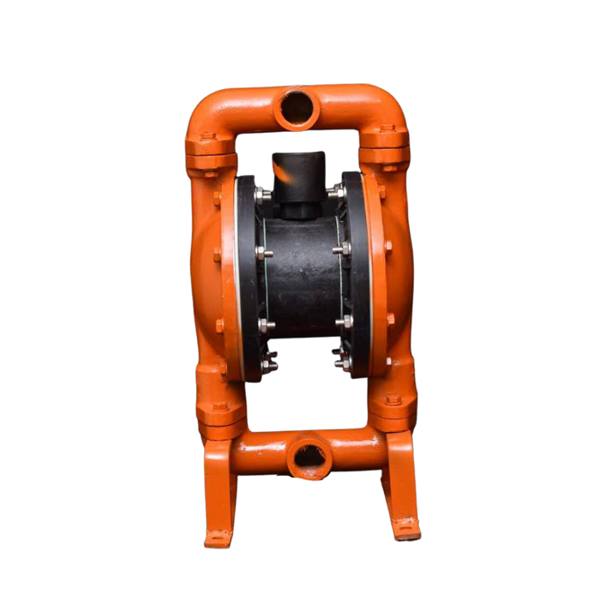

1″ AODD Pump — Coated Metallic
A step up in capacity, moving up to 135 L/min and passing solids to around 3.2 mm. The coated metallic body withstands general industrial service, and air operation keeps it seal-less, self-priming and run-dry safe. PTFE diaphragms give broad media compatibility.
Price on request
Specifications
| Construction | Metallic, coated |
| Diaphragm | PTFE (Teflon) · alternatives on request |
| Max flow rate | Up to 135 L/min |
| Inlet / discharge ports | 25.4 mm (1″ BSP) |
| Air inlet | 1/4″ BSP |
| Air exhaust | 12.7 mm (1/2″ BSP) |
| Air supply pressure | Typically 1.5–7 bar (20–100 psi) |
| Max discharge head | Up to approx. 60 m (about 6 bar) |
| Suction lift — wet / dry | Approx. 4.9 m / 3.1 m |
| Max particle size | Up to 3.2 mm |
| Weight | Approx. 13–15 kg |
