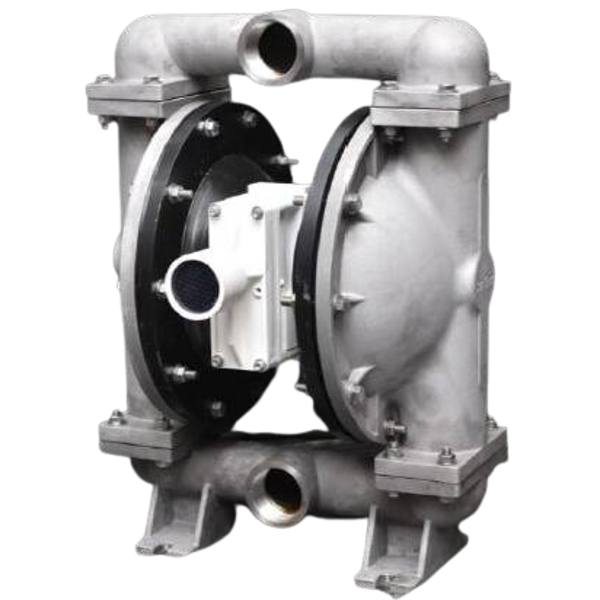

1.5″ AODD Pump — Uncoated Metallic
Pairs a bare metallic body with PTFE diaphragms for clean, corrosion-resistant, higher-throughput service up to 270 L/min, with solids handling to around 4.8 mm. The heaviest build in this size at 35–40 kg. Air operation keeps it seal-less, self-priming and run-dry safe.
Price on request
Specifications
| Construction | Metallic, uncoated |
| Diaphragm | PTFE (Teflon) · alternatives on request |
| Max flow rate | Up to 270 L/min |
| Inlet / discharge ports | 38.1 mm (1.5″ BSP) |
| Air inlet | 1/2″ BSP |
| Air exhaust | 12.7 mm (1/2″ BSP) |
| Air supply pressure | Typically 1.5–7 bar (20–100 psi) |
| Max discharge head | Up to approx. 60 m (about 6 bar) |
| Suction lift — wet / dry | Approx. 7.6 m / 4.6 m |
| Max particle size | Up to 4.8 mm |
| Weight | Approx. 35–40 kg |
