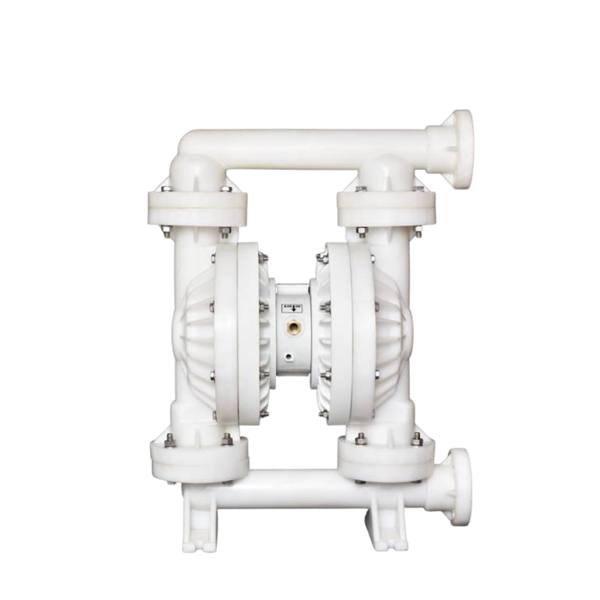

1.5″ AODD Pump — Non-Metallic
With a non-metallic body and PTFE diaphragms, this pump resists aggressive chemicals while moving up to 270 L/min and passing solids to around 4.8 mm — and it is around 10 kg lighter than the equivalent bare metallic build. Air-driven, seal-less, self-priming and run-dry capable.
Price on request
Specifications
| Construction | Non-metallic |
| Diaphragm | PTFE (Teflon) · alternatives on request |
| Max flow rate | Up to 270 L/min |
| Inlet / discharge ports | 38.1 mm (1.5″ BSP) |
| Air inlet | 1/2″ BSP |
| Air exhaust | 12.7 mm (1/2″ BSP) |
| Air supply pressure | Typically 1.5–7 bar (20–100 psi) |
| Max discharge head | Up to approx. 60 m (about 6 bar) |
| Suction lift — wet / dry | Approx. 7.6 m / 4.6 m |
| Max particle size | Up to 4.8 mm |
| Weight | Approx. 25–30 kg |
