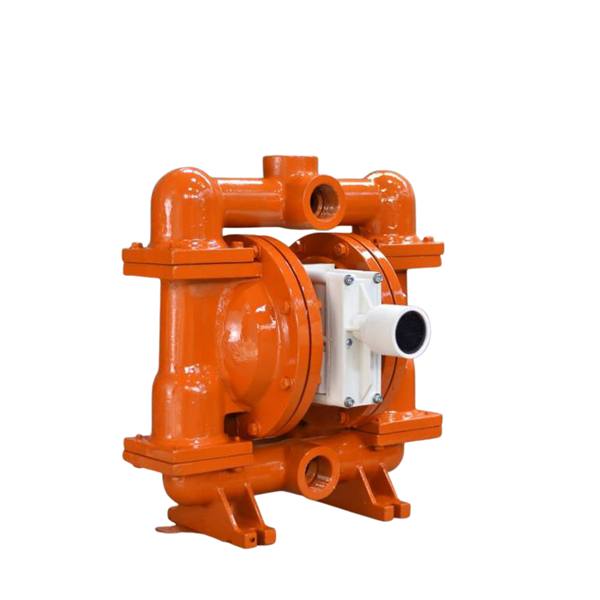

1.5″ AODD Pump — Coated Metallic
Raises capacity to 270 L/min and passes solids to around 4.8 mm, suiting higher-throughput transfer and process duties. The coated metallic body is built for industrial service, and air operation keeps it seal-less, self-priming and run-dry capable with PTFE diaphragms.
Price on request
Specifications
| Construction | Metallic, coated |
| Diaphragm | PTFE (Teflon) · alternatives on request |
| Max flow rate | Up to 270 L/min |
| Inlet / discharge ports | 38.1 mm (1.5″ BSP) |
| Air inlet | 1/2″ BSP |
| Air exhaust | 12.7 mm (1/2″ BSP) |
| Air supply pressure | Typically 1.5–7 bar (20–100 psi) |
| Max discharge head | Up to approx. 60 m (about 6 bar) |
| Suction lift — wet / dry | Approx. 7.6 m / 4.6 m |
| Max particle size | Up to 4.8 mm |
| Weight | Approx. 25–30 kg |
